Annotations

Multi-tier TextGrid annotation system

Overview

Ozen-web provides a complete TextGrid-compatible annotation system for transcription, labeling, and segmentation. Create multi-tiered annotations with interval and point tiers, compatible with Praat.

Key Features

Praat-compatible TextGrid - Import/export in TextGrid format (short and long)
Multi-tier support - Unlimited annotation tiers
Interval tiers - Segment audio into labeled intervals
Boundary editing - Add, remove, move boundaries
Text editing - Label intervals with text
Unified undo/redo - Full undo history (Ctrl+Z / Ctrl+Y)
Keyboard workflow - Efficient shortcuts for rapid annotation

Tier Management

Adding Tiers

Via UI: 1. Click “+ Add Tier” button 2. Enter tier name (e.g., “words”, “phones”, “syllables”) 3. Press Enter to create

Tier Naming: - Use descriptive names: “words”, “phones”, “tones”, “events” - Multiple tiers allow parallel annotations at different granularities

Tier Types

Currently supported: - Interval tiers - Continuous segmentation with boundaries

Planned: - Point tiers - Single time points with labels (future feature)

Deleting Tiers

Warning

Tier deletion is permanent and cannot be undone. Export your TextGrid before deleting tiers.

Click tier menu (⋮)
Select “Delete tier”
Confirm deletion

Boundary Management

Adding Boundaries

Double-click method: 1. Double-click on tier at desired time position 2. Boundary appears, splitting the interval

Cursor method: 1. Click on spectrogram to place cursor 2. Double-click on tier at cursor position

Quick Annotation Workflow

Press Space to play audio
Press Escape when you hear a boundary
Double-click tier to add boundary at cursor
Repeat for all boundaries

Moving Boundaries

Drag and drop: 1. Click and hold boundary marker 2. Drag left or right to new position 3. Release to place

Precision: - Zoom in (scroll wheel) for fine-grained adjustment - Cursor position indicator shows exact time

Boundary Snapping

When adding boundaries on lower tiers, they can snap to boundaries in upper tiers. Double-clicking near an existing boundary on a different tier will snap to that time, maintaining alignment. A boundary can then be dragged to a different location, if so desired.

Removing Boundaries

Right-click menu: 1. Right-click on boundary marker 2. Select “Remove boundary” 3. Adjacent intervals merge

Keyboard shortcut: - Select boundary (click) - Press Delete or Backspace

Undo Support

All boundary operations (add, move, remove) can be undone with Ctrl+Z (Cmd+Z on Mac).

Text Editing

Labeling Intervals

Double-click to edit: 1. Double-click on interval to activate text editor 2. Type label (IPA, orthography, tags, etc.) 3. Press Enter to save 4. Press Escape to cancel

Click to select: - Single-click interval to select without editing - Selected interval highlights

Unicode and IPA Support

Full Unicode support for linguistic transcription:

[ˈhɛloʊ] - IPA transcription
你好 - Chinese characters
🔊 - Emoji labels (for prosody annotation)

Multi-line Labels

Press Shift+Enter for multi-line labels (if needed for glosses or notes).

Keyboard Shortcuts

Shortcut	Action
Double-click tier	Add boundary at position
Double-click interval	Edit text label
Enter	Save text edit
Escape	Cancel text edit / deselect
Ctrl+Z / Cmd+Z	Undo
Ctrl+Y / Ctrl+Shift+Z	Redo
Delete / Backspace	Remove selected boundary
1-5	Switch to tier 1-5

See Keyboard Shortcuts Reference for complete list.

Undo System

Ozen-web features a unified undo/redo system for annotation operations:

Undoable operations: - Adding boundaries - Removing boundaries - Moving boundaries - Editing interval text - Adding / removing data points

Non-undoable operations: - Adding/removing tiers (permanent) - Loading files

Undo History

The undo stack stores the entire annotation state before each operation. You can undo multiple operations sequentially to return to any previous state.

Keyboard: - Undo: Ctrl+Z (Windows/Linux), Cmd+Z (Mac) - Redo: Ctrl+Y (Windows/Linux), Ctrl+Shift+Z (Mac)

TextGrid Import/Export

Importing TextGrid

Requirements: - Audio must be loaded first (the TextGrid import button is only available after loading audio)

File picker: 1. Click “Load TextGrid” button 2. Select .TextGrid file 3. Annotations appear on tiers

Supported formats: - Short TextGrid format (quoted strings) - Long TextGrid format (ooTextFile)

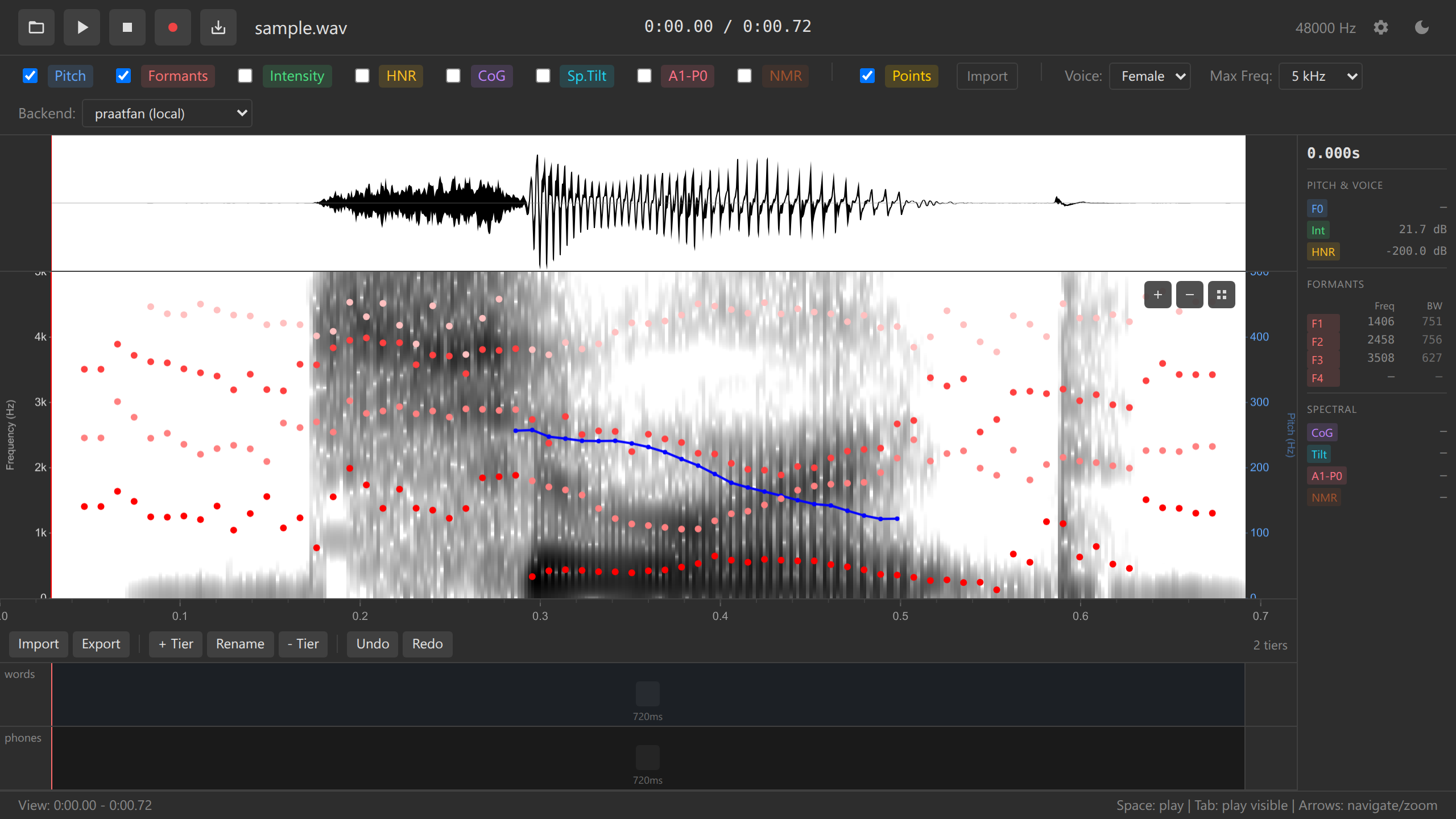

Exporting TextGrid

Via UI button: 1. Click “Export TextGrid” button 2. Choose save location (File System Access API) 3. TextGrid saves in short format

Export format: - Short TextGrid format (Praat-compatible) - UTF-8 encoding - Interval tiers only (current version)

Filename: - Default: annotations.TextGrid - Recommended: Match audio filename (e.g., recording.wav → recording.TextGrid)

Integration with Data Points

Data points automatically capture annotation labels at their time position:

Example TSV export:

time    freq    pitch  F1    label_words  label_phones
1.234   720     245    720   "cat"        "æ"
1.567   1240    250    850   "sat"        "æ"

This enables correlation analysis between acoustic measurements and annotation categories.

See Data Points for details.

Best Practices

Tier Organization

Hierarchical structure: 1. Top tier: Largest units (utterances, phrases) 2. Middle tiers: Intermediate units (words, syllables) 3. Bottom tiers: Smallest units (phones, events)

Alignment: - Keep boundaries aligned across tiers when appropriate - Use boundary snapping for consistent segmentation

Labeling Conventions

Be consistent: - Decide on transcription convention (IPA, ARPABET, orthography) - Use same labels for same sounds - Document conventions in separate file

Common systems: - IPA: Universal phonetic transcription - ARPABET: ASCII-friendly phoneme set - X-SAMPA: ASCII IPA alternative - Orthography: Plain text spelling

File Management

Naming: - Match TextGrid filename to audio: speaker01.wav + speaker01.TextGrid - Use consistent naming across corpus

Backup: - Export TextGrid frequently during annotation - Version control for large projects (Git) - Keep original audio files separate from annotations

Troubleshooting

TextGrid Won’t Load

Problem: Error loading .TextGrid file

Possible causes: - File encoding (not UTF-8) - Malformed TextGrid format - Point tiers (not yet supported)

Solution: - Re-export from Praat - Check file encoding (should be UTF-8) - Convert point tiers to interval tiers in Praat

Boundaries Not Snapping

Problem: Boundaries won’t align to other tiers

Solution: - Zoom in closer to boundary - Click precisely on boundary location - Manually align by dragging

Undo Not Working

Problem: Ctrl+Z doesn’t undo operation

Non-undoable operations: - Adding/removing tiers - Loading files

Solution: - Only annotation edits are undoable - Export TextGrid before tier operations
